LinFeed Compact (LFC)

For maximum speed and efficiency in series production

Compact
all-in-one-solution

Cycle times
of up to 0.3 seconds per part

Tool-free setup
in minutes

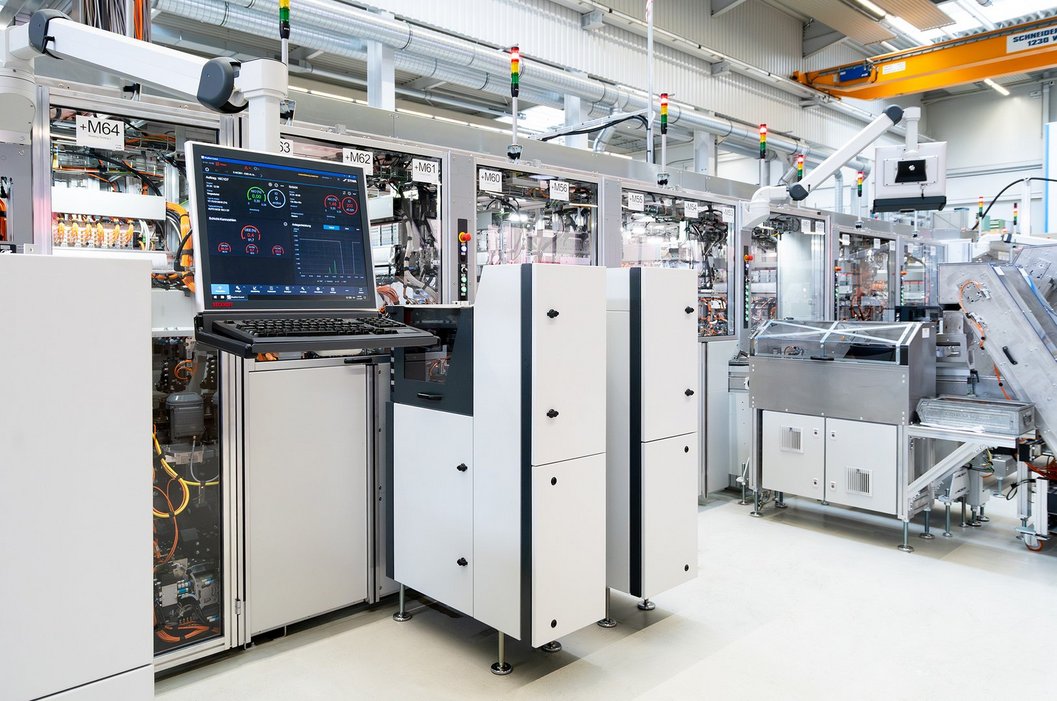

Feeding Systems LinFeed Compact

Do you need maximum speed, absolute reliability and easy integration?


This is exactly why the LFC was developed. The LinFeed Compact (LFC) is the all-in-one solution for your demanding series production.


As a completely encapsulated system, it combines all components in a modern, closed housing. This allows you to benefit from maximum process stability, protection against external influences and significantly faster start-up. The LFC is consistently designed to perform its task with maximum efficiency and availability – robust, low-maintenance and ready for immediate use.

Overview of Models

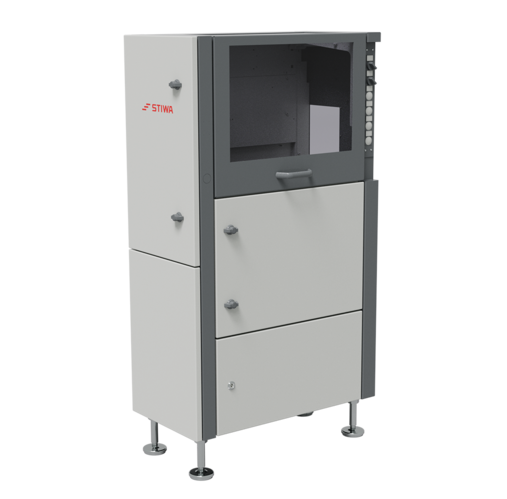

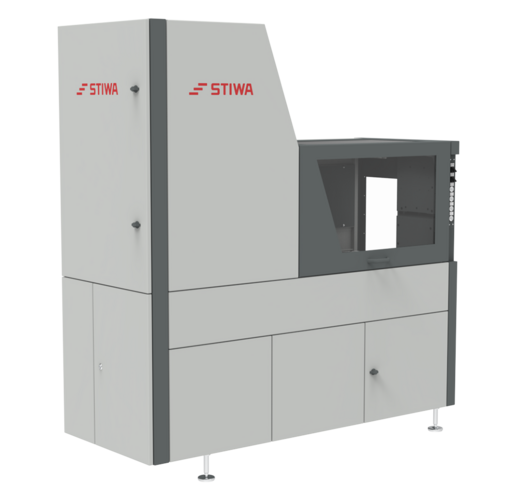

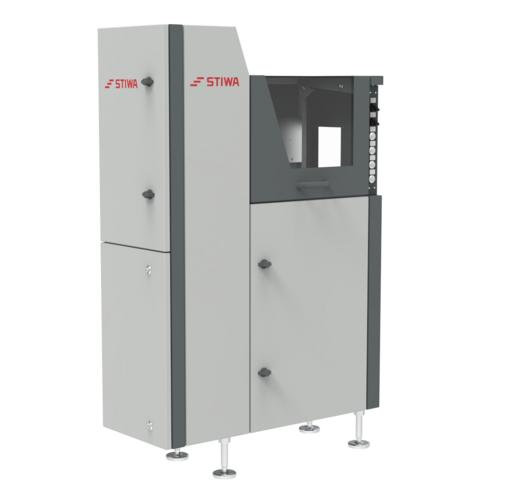

  LFC 2 LFC 3 LFC 4 LFC 5
Product part body diagonal: up to 30 mm up to 60 mm up to 90 mm up to 120 mm
Hopper volume: 5 liters 26 liters 52 liters 110 liters
Vibration frequency: 50 Hz
100 Hz		 50 Hz
100 Hz		 50 Hz 50 Hz
Dosing: Inclined conveyor
Stepper conveyor
Conveyor pot		 Inclined conveyor Inclined conveyor
Stepper conveyor
Conveyor pot		 Inclined conveyor



This is your benefit

  • Fully integrated feeding unit
  • Highest part throughput
  • Continuous, precise parts supply
  • Quick-change device
  • AI-supported conveying simulation (STIFSIM)
  • Hopper rapid emptying
  • Filling level monitoring
  • Integrated dust and noise protection
  • With modern, closed housing available
  • Housing colors freely selectable
  • Easy and fast maintenance

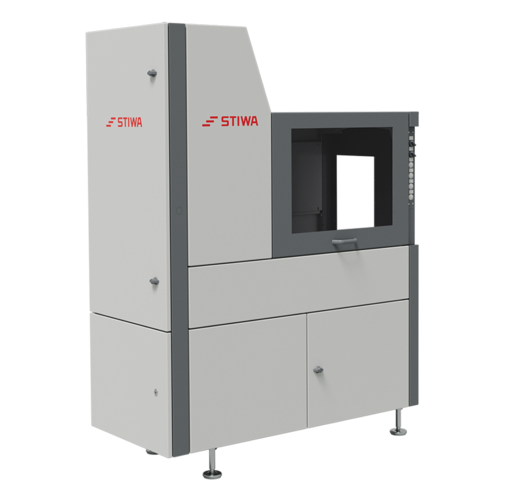

The LinFeed Compact 4 feeder has a 52-liter hopper capacity
