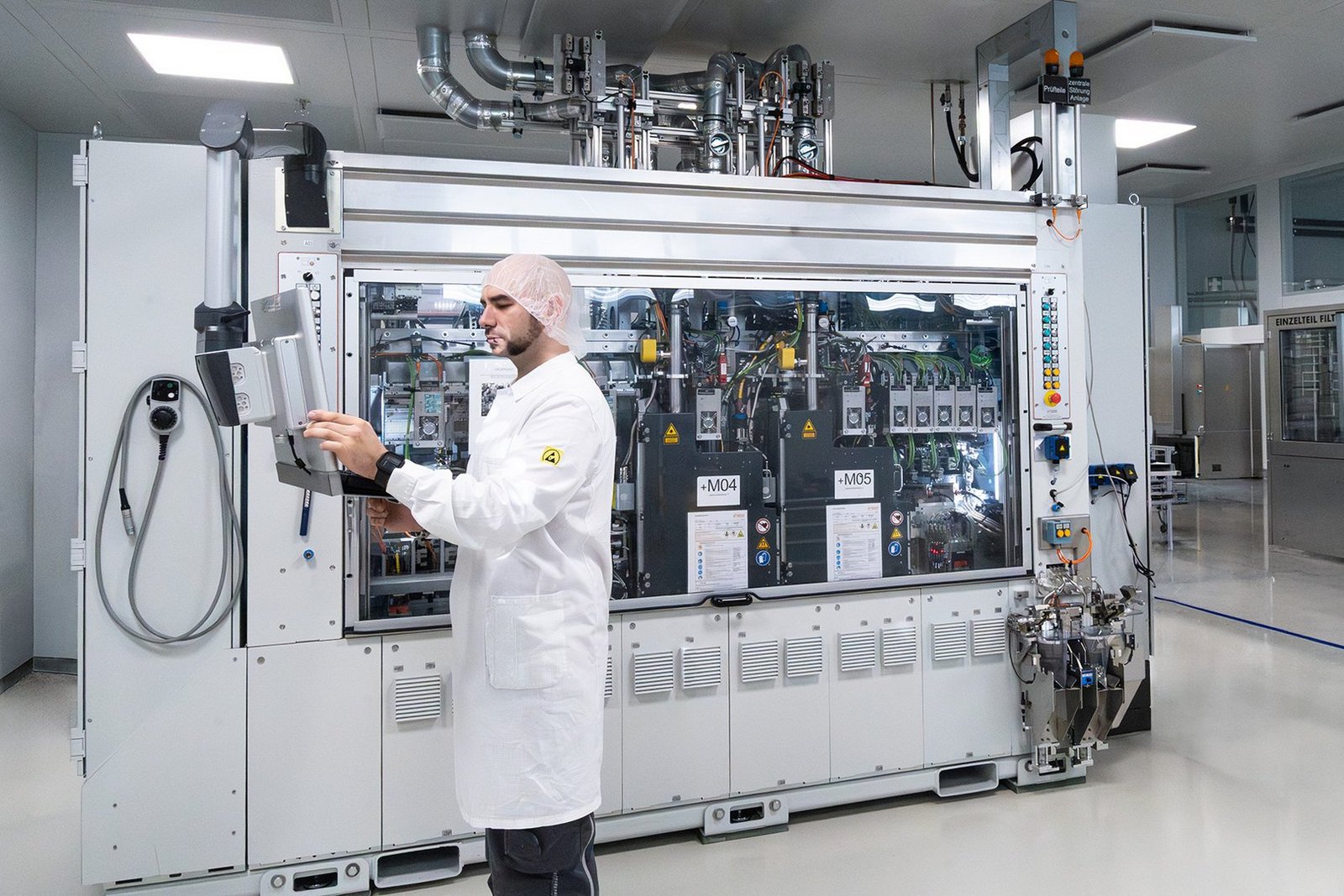

LTM-CI Compact Automation for Small Part Assembly

Compact Automation Systems

The STIWA Compact Automation LTM-CI is our state-of-the-art solution for the precise series production of small parts with component diagonals up to 30 mm. As a technology leader in automation, we know how to combine mechanics, software and electronics in a targeted manner in order to create production solutions with the best possible overall effect.

The LTM-CI system perfectly embodies this claim. It offers the full range of functions of a complex industrial machine with minimal installation space and implements cycle times in the sub-second range. The LTM-CI is a flexible plug & work system. It offers comprehensive solutions from feeding and handling to precise transport, and is the answer to the most demanding challenges in small parts assembly

THE FACTS OF LTM-CI

Cycle time	from 0.5 sec.
Positioning accuracy	± 0.07 mm conveyor system (in machine direction) ± 0.03 mm conveyor system (transversely to machine direction) ± 0.15 mm system accuracy (conveyor system + handling)
Dimension of parts	Up to room diagonal 30 mm
Feeders	Parts hopper (0.1 bis 3.5l) various elevator systems (e.g. round conveyors, inclined conveyor)
Device dimensions (L x W x H)	2,520 – 3,240 x 1,400 x 2,050 – 3,000 mm
Noise emission	approx. 70 dBA (depending on parts)

Benefits & Impact: The benefits of LTM-CI

PERFORMANCE

Realization of shortest cycle times from 0.5 seconds with highest precision and maximum availability.

SUSTAINABILITY

Outstanding energy efficiency in a minimum of space saves valuable resources. A high level of standardization ensures the longevity and reusability of the components.

FLEXIBLE PRODUCTION

Effortless integration of different product types on a single machine, supported by the shortest setup times and maximum adaptability.

M2M EXPANDABILITY

Seamless integration as a pre-assembly or feeding cell into existing production lines.

ERGONOMICS

Low-vibration and low-noise operation creates a pleasant and productive working environment. Optimum accessibility ensures easy loading and a well thought-out, ergonomic operation.

TRACEABILITY

Seamless traceability of all process steps down to the level of each individual part creates maximum transparency and quality assurance.

Intelligent design for highest precision:
The modular structure in detail

The LTM-CI system has a consistently modular design to optimize the assembly of small components.
Each component is designed for maximum performance and flexibility.

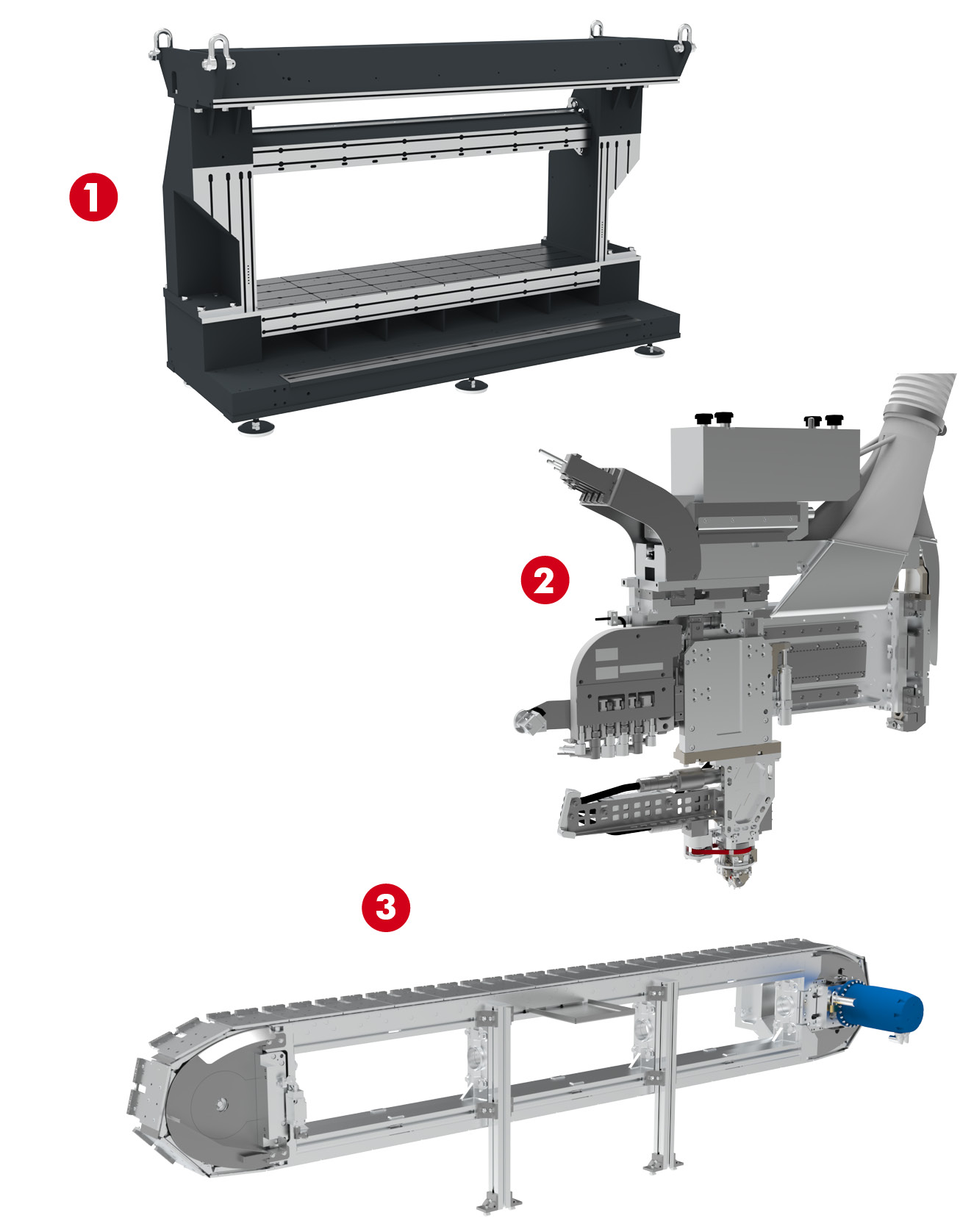

Mechanical Structure

Basic body - A basic structure that dampens vibrations forms the stable and precise basis of the machine. It enables the flexible connection of all other components.
Portal handling & gripping units - Up to 24 module slots for handling systems with up to five degrees of freedom (DOF) provide maximum flexibility in assembly. We tailor the different gripper systems individually to your requirements.
Transfer system - The core is a rigidly linked conveyor system. It guarantees highest precision and shortest workpiece carrier change times (WPC) for smooth, high-performance operation.
Feeding systems - Flexible loading variants, optionally with an extraction function, ensure that bulk material is sorted and fed in the correct position. These include parts hopper (up to 3.5 liters), various elevator systems and oscillating conveyors with camera systems.
Protection system - A modern and functional design combines certified safety with ergonomic operation, for example through an easily accessible sliding door.
